—配套产品—智能无负压给水设备
一、特点原理及图片

 WZG智能无负压给水设备,能直接与自来水管网连接、且对自来水管网不产生任何负作用的成套给水设备。它可以取代蓄水池,能充分利用自来水管网的压力直接供水或间接供水,避免了能源的二次浪费和二次污染,大幅度节省了基建投资并缩短了施工工期。WZG智能无负压给水设备由智能型变频控制柜、稳流罐、水泵机组、仪表、阀门及管路、基座等组成,适用于一切需要增高水压、恒定流量的给水系统。

产品特点

1. 无需建水池-节能、节资
WZG系列智能无负压给水设备经济卫生、节能效果显著,实践证明:使用智能型无负压给水设备可节省50%以上的兴建水池费用;
2. 安装简单、节省占地面积
WZG系列智能无负压给水设备既可配置卧式稳流罐,亦可配置立式稳流罐。两种稳流罐具有不同的特点:卧式稳流罐占据空间小;立式稳流罐占地面积小。稳流罐的制造、检验均符合GB150(钢制压力容器)的规定,但因罐内不储存压缩气体,所以不须列入压力容器的管路范围。
3. 用途广泛、适用性强WZG系列智能无负压给水设备可作生活供水用,也可作消防供水用,可配置任意型号的水泵,当设备用于消防时,宜配备消防专用水泵;
4. 功能全、智能化程度高
WZG系列智能无负压给水设备具有软启动,有过载、短路、过压、欠压、缸相、过热和失速保护等功能。在异常情况下能进行信号报警、自检、故障判断等,还可根据用水量的高低自动调节供水流量;

WZG系列智能无负压给水设备可根据自来水管网压力稳定情况,配置小型气压罐,避免水泵频繁启动,以延长设备使用寿命,其蓄能、稳压性能更加显著。

型号意义

WZG 90 /60 2 D

WZG--------------------------------智能无负压给水设备
90---------------------------------供水压力(m)
60---------------------------------最大供水流量(m3/h)
2----------------------------------水泵台数:用数字表示
D----------------------------------水泵类型:D-DL型. G-GDL型. L-LG型

环境条件

1:环境温度:0-40℃
2:空气相对湿度:≤85%(20≠5℃时)
3:介质温度:4-70℃
4:供电电压:380V(+5%. -10%)

工作原理

设备投入使用,自来水管网的水进入稳流罐,罐内空气从真空消声器排出,待水充满后,真空消声器自动关闭。当自来水管网压力能够满足用水要求时,系统由旁通止回阀向用水管网直接供水;当自来水管网压力不能满足用水要求时,系统压力信号由远传压力表反馈给变频控制器,水泵运行,并根据用水量的大小自动调节转速恒压供水,若运转水泵达到工频转速时,则启动另一台水泵变频运转。水泵供水时,若自来水管网的水量大于水泵流量,系统保持正常供水:用水高峰时,若自来水管网水量小于水泵流量时,稳流罐内的水作为补充水源仍能正常供水,此时,空气由真空消声器进入稳流罐,罐内真空遭到破坏,确保了自来水管网不产生负压,用水高峰过后,系统又恢复到正常供水状态。当自来水管网停水,造成稳流罐液位不断下降,液位探测器将信号反馈给变频控制柜,水泵自动停机,以保护水泵机组。夜间小流量供水且自来水管网压力不能满足要求时,气压罐可以贮存并释放能量,避免了水泵频繁启动。

应用范围

适用于任何自来水压力不足地区的加压技术:
新建的住宅小区或办公楼等生活用水。
低层自来水压力不能满足要求的消防用水。
改造建好水池的,可以采用无负压设备与水池共用的供水方式,进一步节能。
自来水的供水中间加压泵站。
工矿企业的生产. 生活用水等。
各种循环系统。



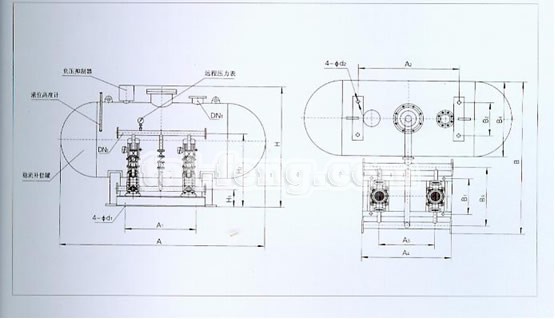

智能无负压给水设备 产品图
二、 性能参数

工作原理图



传统水池供水设备与智能无负压给水设备对比表性能参数
序号 设备型号 流量 (m3/h) 扬程 (m) 参数户数 推荐水泵 稳流罐型号Φ×L 电控柜型号
型号 台数 功率(Kw)
1 WZG30/6-2L 4.8 6 6.4 31.2 30 23.1 10 15 30 25LG3-10×3 2 1.1 Φ600×1.5 DKG1.1-2
2 WZG40/6-2L 4.8 6 6.4 41.6 40 30.8 10 15 30 25LG3-10×4 2 1.5 Φ600×1.5 DKG1.5-2
3 WZG50/6-2L 4.8 6 6.4 52 50 38.5 10 15 30 25LG3-10×5 2 1.5 Φ600×1.5 DKG1.5-2
4 WZG60/6-2L 4.8 6 6.4 62.4 60 46.2 10 15 30 25LG3-10×6 2 2.2 Φ600×1.5 DKG2.2-2
5 WZG70/6-2L 4.8 6 6.4 72.8 70 53.9 10 15 30 25LG3-10×7 2 2.2 Φ600×1.5 DKG2.2-2
6 WZG80/6-2L 4.8 6 6.4 83.2 80 61.6 10 15 30 25LG3-10×8 2 2.2 Φ600×1.5 DKG2.2-2
7 WZG90/6-2L 4.8 6 6.4 93.6 90 69.3 10 15 30 25LG3-10×9 2 2.2 Φ600×1.5 DKG2.2-2
8 WZG100/6-2L 4.8 6 6.4 104 100 77 10 15 30 25LG3-10×10 2 3 Φ600×1.5 DKG3-2
9 WZG30/13-2L 9 13 19 32.6 30 23 30 50 90 32LG6.5-15×2 2 1.5 Φ600×1.5 DKG1.5-2
10 WZG45/13-2L 9 13 19 48.9 45 34.5 30 50 90 32LG6.5-15×3 2 2.2 Φ600×1.5 DKG2.2-2
11 WZG60/13-2L 9 13 19 65.5 60 46 30 50 90 32LG6.5-15×4 2 3 Φ600×1.5 DKG3-2
12 WZG75/13-2L 9 13 19 81.5 75 57.5 30 50 90 32LG6.5-15×5 2 4 Φ600×1.5 DKG4-2
13 WZG90/13-2L 9 13 19 97.5 90 69 30 50 90 32LG6.5-15×6 2 4 Φ600×1.5 DKG4-2
14 WZG105/13-2L 9 13 19 114.1 105 80.5 30 50 90 32LG6.5-15×7 2 5.5 Φ600×1.5 DKG5.5-2
15 WZG120/13-2L 9 13 19 130.4 126 92 30 50 90 32LG6.5-15×8 2 5.5 Φ600×1.5 DKG5.5-2
16 WZG30/24-2L 18 24 36 32 30 24 90 140 250 40LG12-15×2 2 2.2 Φ800×2.0 DKG2.2-2
17 WZG45/24-2L 18 24 36 48 45 36 90 140 250 40LG12-15×3 2 3 Φ800×2.0 DKG3-2
18 WZG60/24-2L 18 24 36 64 60 48 90 140 250 40LG12-15×4 2 4 Φ800×2.0 DKG4-2
19 WZG75/24-2L 18 24 36 80 75 60 90 140 250 40LG12-15×5 2 5.5 Φ800×2.0 DKG5.5-2
20 WZG90/24-2L 18 24 36 96 90 72 90 140 250 40LG12-15×6 2 5.5 Φ800×2.0 DKG5.5-2
21 WZG105/24-2L 18 24 36 112 105 80 90 140 250 40LG12-15×7 2 7.5 Φ800×2.0 DKG7.5-2
22 WZG120/24-2L 18 24 36 128 120 96 90 140 250 40LG12-15×8 2 7.5 Φ800×2.0 DKG7.5-2
23 WZG40/48-2L 36 48 60 44 40 33 250 350 500 50LG24-20×2 2 5.5 Φ1000×2.2 DKG5.5-2
24 WZG60/48-2L 36 48 60 66 60 49.5 250 350 500 50LG24-20×3 2 7.5 Φ1000×2.2 DKG7.5-2
25 WZG80/48-2L 36 48 60 88 80 66 250 350 500 50LG24-20×4 2 11 Φ1000×2.2 DKG11-2
26 WZG100/48-2L 36 48 60 110 100 82.5 250 350 500 50LG24-20×5 2 11 Φ1000×2.2 DKG11-2
27 WZG120/48-2L 36 48 60 132 120 99 250 350 500 50LG24-20×6 2 15 Φ1000×2.2 DKG15-2
28 WZG40/72-2L 54 72 86.4 45.5 40 34 400 650 800 65LG36-20×2 2 7.5 Φ1200×2.6 DKG7.5-2
29 WZG60/72-2L 54 72 86.4 68.2 60 51 400 650 800 65LG36-20×3 2 11 Φ1200×2.6 DKG11-2
30 WZG80/72-2L 54 72 86.4 91 80 68 400 650 800 65LG36-20×4 2 15 Φ1200×2.6 DKG15-2
31 WZG100/72-2L 54 72 86.4 113.7 100 85 400 650 800 65LG36-20×5 2 18.5 Φ1200×2.6 DKG18.5-2
32 WZG120/72-2L 54 72 86.4 136.5 120 102 400 650 800 65LG36-20×6 2 22 Φ1200×2.6 DKG22-2
33 WZG40/100-2L 80 100 136.8 43.6 40 31.7 750 1000 1400 80LG50-20×2 2 11 Φ1400×3.1 DKG11-2
34 WZG60/100-2L 80 100 136.8 65.4 60 47.5 750 1000 1400 80LG50-20×3 2 15 Φ1400×3.1 DKG15-2
35 WZG80/100-2L 80 100 136.8 87.2 80 63.4 750 1000 1400 80LG50-20×4 2 18.5 Φ1400×3.1 DKG18.5-2
36 WZG100/100-2L 80 100 136.8 109 100 79.2 750 1000 1400 80LG50-20×5 2 22 Φ1400×3.1 DKG22-2
37 WZG33/8-2G 5.6 8 9.6 36 33 28.5 10 25 30 25GDL4-11×3 2 1.1 Φ600×1.5 DKG1.1-2
38 WZG44/8-2G 5.6 8 9.6 48 44 38 10 25 30 25GDL4-11×4 2 1.5 Φ600×1.5 DKG1.5-2
39 WZG55/8-2G 5.6 8 9.6 60 55 47.5 10 25 30 25GDL4-11×5 2 2.2 Φ600×1.5 DKG2.2-2
40 WZG66/8-2G 5.6 8 9.6 72 66 57 10 25 30 25GDL4-11×6 2 2.2 Φ600×1.5 DKG2.2-2
41 WZG77/8-2G 5.6 8 9.6 84 77 66.5 10 25 30 25GDL4-11×7 2 3 Φ600×1.5 DKG3-2
42 WZG88/8-2G 5.6 8 9.6 96 88 76 10 25 30 25GDL4-11×8 2 3 Φ600×1.5 DKG3-2
43 WZG99/8-2G 5.6 8 9.6 108 99 85.5 10 25 30 25GDL4-11×9 2 3 Φ600×1.5 DKG3-2
44 WZG110/8-2G 5.6 8 9.6 120 110 95 10 25 30 25GDL4-11×10 2 4 Φ600×1.5 DKG4-2
45 WZG121/8-2G 5.6 8 9.6 132 121 104.5 10 25 30 25GDL4-11×11 2 4 Φ600×1.5 DKG4-2
46 WZG132/8-2G 5.6 8 9.6 144 132 114 10 25 30 25GDL4-11×12 2 4 Φ600×1.5 DKG4-2
47 WZG36/12-2G 84 12 14.4 41 36 30.5 28 50 90 40GDL6-12×3 2 1.5 Φ600×1.5 DKG1.5-2
48 WZG48/12-2G 84 12 14.4 54 48 40.6 28 50 90 40GDL6-12×4 2 2.2 Φ600×1.5 DKG2.2-2
49 WZG60/12-2G 84 12 14.4 68 60 51 28 50 90 40GDL6-12×5 2 2.2 Φ600×1.5 DKG2.2-2
50 WZG72/12-2G 84 12 14.4 82 72 61 28 50 90 40GDL6-12×6 2 3 Φ600×1.5 DKG3-2
51 WZG84/12-2G 84 12 14.4 95 84 71 28 50 90 40GDL6-12×7 2 3 Φ600×1.5 DKG3-2
52 WZG96/12-2G 84 12 14.4 109 96 81 28 50 90 40GDL6-12×8 2 4 Φ600×1.5 DKG4-2
53 WZG108/12-2G 84 12 14.4 123 108 91 28 50 90 40GDL6-12×9 2 4 Φ600×1.5 DKG4-2
54 WZG120/12-2G 84 12 14.4 136 120 102 28 50 90 40GDL6-12×10 2 4 Φ600×1.5 DKG4-2
55 WZG132/12-2G 84 12 14.4 150 132 112 28 50 90 40GDL6-12×11 2 5.5 Φ600×1.5 DKG5.5-2
56 WZG144/12-2G 84 12 14.4 164 144 122 28 50 90 40GDL6-12×12 2 5.5 Φ600×1.5 DKG5.5-2
57 WZG30/24-2G 16.8 24 28.8 36 30 24 90 140 190 50GDL12-15×2 2 2.2 Φ800×2.0 DKG2.2-2
58 WZG45/24-2G 16.8 24 28.8 54 45 36 90 140 190 50GDL12-15×3 2 3 Φ800×2.0 DKG3-2
59 WZG60/24-2G 16.8 24 28.8 72 60 48 90 140 190 50GDL12-15×4 2 4 Φ800×2.0 DKG4-2
60 WZG75/24-2G 16.8 24 28.8 90 75 60 90 140 190 50GDL12-15×5 2 5.5 Φ800×2.0 DKG5.5-2
61 WZG90/24-2G 16.8 24 28.8 108 90 72 90 140 190 50GDL12-15×6 2 5.5 Φ800×2.0 DKG5.5-2
62 WZG105/24-2G 16.8 24 28.8 126 105 84 90 140 190 50GDL12-15×7 2 7.5 Φ800×2.0 DKG7.5-2
63 WZG120/24-2G 16.8 24 28.8 144 120 96 90 140 190 50GDL12-15×8 2 7.5 Φ800×2.0 DKG7.5-2
64 WZG135/24-2G 16.8 24 28.8 162 135 108 90 140 190 50GDL12-15×9 2 11 Φ800×2.0 DKG11-2
65 WZG150/24-2G 16.8 24 28.8 180 150 120 90 140 190 50GDL12-15×10 2 11 Φ800×2.0 DKG11-2
66 WZG30/36-2G 25.2 36 43.2 36 30 25 140 250 300 50GDL18-15×2 2 3 Φ800×2.0 DKG3-2
67 WZG45/36-2G 25.2 36 43.2 54 45 37.5 140 250 300 50GDL18-15×3 2 4 Φ800×2.0 DKG4-2
68 WZG60/36-2G 25.2 36 43.2 72 60 50 140 250 300 50GDL18-15×4 2 5.5 Φ800×2.0 DKG5.5-2
69 WZG75/36-2G 25.2 36 43.2 90 75 62.5 140 250 300 50GDL18-15×5 2 7.5 Φ800×2.0 DKG7.5-2
70 WZG90/36-2G 25.2 36 43.2 108 90 75 140 250 300 50GDL18-15×6 2 7.5 Φ800×2.0 DKG7.5-2
71 WZG105/36-2G 25.2 36 43.2 126 105 82.5 140 250 300 50GDL18-15×7 2 11 Φ800×2.0 DKG11-2
72 WZG120/36-2G 25.2 36 43.2 144 120 100 140 250 300 50GDL18-15×8 2 11 Φ800×2.0 DKG11-2
73 WZG135/36-2G 25.2 36 43.2 162 135 112.5 140 250 300 50GDL18-15×9 2 15 Φ800×2.0 DKG15-2
74 WZG150/36-2G 25.2 36 43.2 180 150 125 140 250 300 50GDL18-15×10 2 15 Φ800×2.0 DKG15-2
75 WZG24/48-2G 33.6 48 57.6 27 24 22 250 350 500 65GDL24-12×2 2 3 Φ1000×2.2 DKG3-2
76 WZG36/48-2G 33.6 48 57.6 40.5 36 33 250 350 500 65GDL24-12×3 2 4 Φ1000×2.2 DKG4-2
77 WZG48/48-2G 33.6 48 57.6 54 48 44 250 350 500 65GDL24-12×4 2 5.5 Φ1000×2.2 DKG5.5-2
78 WZG60/48-2G 33.6 48 57.6 67.5 60 55 250 350 500 65GDL24-12×5 2 7.5 Φ1000×2.2 DKG7.5-2
79 WZG72/48-2G 33.6 48 57.6 81 72 66 250 350 500 65GDL24-12×6 2 7.5 Φ1000×2.2 DKG7.5-2
80 WZG84/48-2G 33.6 48 57.6 94.5 84 77 250 350 500 65GDL24-12×7 2 11 Φ1000×2.2 DKG11-2
81 WZG96/48-2G 33.6 48 57.6 108 96 88 250 350 500 65GDL24-12×8 2 11 Φ1000×2.2 DKG11-2
82 WZG108/48-2G 33.6 48 57.6 121.5 108 99 250 350 500 65GDL24-12×9 2 15 Φ1000×2.2 DKG15-2
83 WZG120/48-2G 33.6 48 57.6 135 120 110 250 350 500 65GDL24-12×10 2 15 Φ1000×2.2 DKG15-2
84 WZG24/72-2G 50.4 72 86.4 27 24 21 400 650 800 80GDL36-12×2 2 4 Φ1200×2.6 DKG4-2
85 WZG36/72-2G 50.4 72 86.4 40.5 36 31.5 400 650 800 80GDL36-12×3 2 55 Φ1200×2.6 DKG5.5-2
86 WZG48/72-2G 50.4 72 86.4 54 48 42 400 650 800 80GDL36-12×4 2 75 Φ1200×2.6 DKG7.5-2
87 WZG60/72-2G 50.4 72 86.4 67.5 60 52.5 400 650 800 80GDL36-12×5 2 11 Φ1200×2.6 DKG11-2
88 WZG72/72-2G 50.4 72 86.4 81 72 63 400 650 800 80GDL36-12×6 2 11 Φ1200×2.6 DKG11-2
89 WZG84/72-2G 50.4 72 86.4 94.5 84 73.5 400 650 800 80GDL36-12×7 2 15 Φ1200×2.6 DKG15-2
90 WZG96/72-2G 50.4 72 86.4 108 96 84 400 650 800 80GDL36-12×8 2 15 Φ1200×2.6 DKG15-2
91 WZG108/72-2G 50.4 72 86.4 121.5 108 94.5 400 650 800 80GDL36-12×9 2 18.5 Φ1200×2.6 DKG18.5-2
92 WZG120/72-2G 50.4 72 86.4 135 120 115 400 650 800 80GDL36-12×10 2 18.5 Φ1200×2.6 DKG18.5-2
93 WZG28/108-2G 75.6 108 129.6 32 28 25 750 1000 1400 80GDL54-14×2 2 7.5 Φ1400×3.1 DKG7.5-2
94 WZG42/108-2G 75.6 108 129.6 48 42 37.5 750 1000 1400 80GDL54-14×3 2 11 Φ1400×3.1 DKG11-2
95 WZG56/108-2G 75.6 108 129.6 64 56 50 750 1000 1400 80GDL54-14×4 2 15 Φ1400×3.1 DKG15-2
96 WZG70/108-2G 75.6 108 129.6 80 70 62.5 750 1000 1400 80GDL54-14×5 2 18.5 Φ1400×3.1 DKG18.5-2
97 WZG84/108-2G 75.6 108 129.6 96 84 75 750 1000 1400 80GDL54-14×6 2 18.5 Φ1400×3.1 DKG18.5-2
98 WZG98/108-2G 75.6 108 129.6 112 98 87.5 750 1000 1400 80GDL54-14×7 2 22 Φ1400×3.1 DKG22-2
99 WZG112/108-2G 75.6 108 129.6 128 112 100 750 1000 1400 80GDL54-14×8 2 30 Φ1400×3.1 DKG30-2
100 WZG126/108-2G 75.6 108 129.6 144 126 112.5 750 1000 1400 80GDL54-14×9 2 30 Φ1400×3.1 DKG30-2
101 WZG140/108-2G 75.6 108 129.6 160 140 125 750 1000 1400 80GDL54-14×10 2 37 Φ1400×3.1 DKG37-2
102 WZG28/144-2G 100.8 144 172.8 32 28 24 1200 1600 2000 100GDL72-14×2 2 11 Φ1600×3.2 DKG11-2
103 WZG42/144-2G 100.8 144 172.8 48 42 36 1200 1600 2000 100GDL72-14×3 2 15 Φ1600×3.2 DKG15-2
104 WZG56/144-2G 100.8 144 172.8 64 56 48 1200 1600 2000 100GDL72-14×4 2 18.5 Φ1600×3.2 DKG18.5-2
105 WZG70/144-2G 100.8 144 172.8 80 70 60 1200 1600 2000 100GDL72-14×5 2 22 Φ1600×3.2 DKG22-2
106 WZG84/144-2G 100.8 144 172.8 96 84 72 1200 1600 2000 100GDL72-14×6 2 30 Φ1600×3.2 DKG30-2
107 WZG98/144-2G 100.8 144 172.8 112 98 84 1200 1600 2000 100GDL72-14×7 2 30 Φ1600×3.2 DKG30-2
108 WZG112/144-2G 100.8 144 172.8 128 112 96 1200 1600 2000 100GDL72-14×8 2 37 Φ1600×3.2 DKG37-2
109 WZG126/144-2G 100.8 144 172.8 144 126 108 1200 1600 2000 100GDL72-14×9 2 37 Φ1600×3.2 DKG37-2
110 WZG140/144-2G 100.8 144 172.8 160 140 120 1200 1600 2000 100GDL72-14×10 2 45 Φ1600×3.2 DKG45-2
111 WZG24/12-2D 8.4 12 14.4 26 24 22 28 50 90 40DL6-12×2 2 1.5 Φ600×1.5 DKG1.5-2
112 WZG36/12-2D 8.4 12 14.4 39 36 33 28 50 90 40DL6-12×3 2 2.2 Φ600×1.5 DKG2.2-2
113 WZG48/12-2D 8.4 12 14.4 52 48 44 28 50 90 40DL6-12×4 2 3 Φ600×1.5 DKG3-2
114 WZG60/12-2D 8.4 12 14.4 65 60 55 28 50 90 40DL6-12×5 2 4 Φ600×1.5 DKG4-2
115 WZG72/12-2D 8.4 12 14.4 78 72 66 28 50 90 40DL6-12×6 2 4 Φ600×1.5 DKG4-2
116 WZG84/12-2D 8.4 12 14.4 91 84 77 28 50 90 40DL6-12×7 2 5.5 Φ600×1.5 DKG5.5-2
117 WZG96/12-2D 8.4 12 14.4 104 96 88 28 50 90 40DL6-12×8 2 5.5 Φ600×1.5 DKG5.5-2
118 WZG108/12-2D 8.4 12 14.4 117 108 99 28 50 90 40DL6-12×9 2 7.5 Φ600×1.5 DKG7.5-2
119 WZG120/12-2D 8.4 12 14.4 130 120 110 28 50 90 40DL6-12×10 2 7.5 Φ600×1.5 DKG7.5-2
120 WZG132/12-2D 8.4 12 14.4 143 132 121 28 50 90 40DL6-12×11 2 7.5 Φ600×1.5 DKG7.5-2
121 WZG144/12-2D 8.4 12 14.4 156 144 132 28 50 90 40DL6-12×12 2 11 Φ600×1.5 DKG11-2
122 WZG25/25-2D 18 25 36 27 25 22 90 140 190 50DL12-12.5×2 2 3 Φ800×2.0 DKG3-2
123 WZG38/25-2D 18 25 36 40.5 37.5 33 90 140 190 50DL12-12.5×3 2 3 Φ800×2.0 DKG3-2
124 WZG50/25-2D 18 25 36 54 50 44 90 140 190 50DL12-12.5×4 2 4 Φ800×2.0 DKG4-2
125 WZG62/25-2D 18 25 36 67.5 62.5 55 90 140 190 50DL12-12.5×5 2 5.5 Φ800×2.0 DKG5.5-2
126 WZG75/25-2D 18 25 36 81 75 66 90 140 190 50DL12-12.5×6 2 5.5 Φ800×2.0 DKG5.5-2
127 WZG88/25-2D 18 25 36 94.5 87.5 77 90 140 190 50DL12-12.5×7 2 7.5 Φ800×2.0 DKG7.5-2
128 WZG100/25-2D 18 25 36 108 100 88 90 140 190 50DL12-12.5×8 2 7.5 Φ800×2.0 DKG7.5-2
129 WZG112/25-2D 18 25 36 121.5 112.5 99 90 140 190 50DL12-12.5×9 2 11 Φ800×2.0 DKG11-2
130 WZG125/25-2D 18 25 36 135 125 110 90 140 190 50DL12-12.5×10 2 11 Φ800×2.0 DKG11-2
131 WZG30/60-2D 36 60 72 33 30 26 350 500 650 65DL30-15×2 2 5.5 Φ1000×2.2 DKG5.5-2
132 WZG45/60-2D 36 60 72 49.5 45 39 350 500 650 65DL30-15×3 2 7.5 Φ1000×2.2 DKG7.5-2
133 WZG60/60-2D 36 60 72 66 60 52 350 500 650 65DL30-15×4 2 11 Φ1000×2.2 DKG11-2
134 WZG75/60-2D 36 60 72 82.5 75 65 350 500 650 65DL30-15×5 2 11 Φ1000×2.2 DKG11-2
135 WZG90/60-2D 36 60 72 99 90 78 350 500 650 65DL30-15×6 2 15 Φ1000×2.2 DKG15-2
136 WZG105/60-2D 36 60 72 115.5 105 91 350 500 650 65DL30-15×7 2 15 Φ1000×2.2 DKG15-2
137 WZG120/60-2D 36 60 72 132 120 104 350 500 650 65DL30-15×8 2 18.5 Φ1000×2.2 DKG18.5-2
138 WZG135/60-2D 36 60 72 148.5 135 117 350 500 650 65DL30-15×9 2 22 Φ1000×2.2 DKG22-2
139 WZG150/60-2D 36 60 72 165 150 130 350 500 650 65DL30-15×10 2 22 Φ1000×2.2 DKG22-2
140 WZG40/108-2D 64.8 108 130 42 40 36 750 1000 1400 80DL54-20×2 2 11 Φ1400×3.1 DKG11-2
141 WZG60/108-2D 64.8 108 130 63 60 54 750 1000 1400 80DL54-20×3 2 15 Φ1400×3.1 DKG15-2
142 WZG80/108-2D 64.8 108 130 84 80 72 750 1000 1400 80DL54-20×4 2 22 Φ1400×3.1 DKG22-2
143 WZG100/108-2D 64.8 108 130 105 100 90 750 1000 1400 80DL54-20×5 2 30 Φ1400×3.1 DKG30-2
144 WZG120/108-2D 64.8 108 130 126 120 108 750 1000 1400 80DL54-20×6 2 30 Φ1400×3.1 DKG30-2
145 WZG140/108-2D 64.8 108 130 147 140 126 750 1000 1400 80DL54-20×7 2 37 Φ1400×3.1 DKG37-2
146 WZG160/108-2D 64.8 108 130 168 160 144 750 1000 1400 80DL54-20×8 2 45 Φ1400×3.1 DKG45-2
147 WZG180/108-2D 64.8 108 130 189 180 162 750 1000 1400 80DL54-20×9 2 45 Φ1400×3.1 DKG45-2
148 WZG200/108-2D 64.8 108 130 210 200 180 750 1000 1400 80DL54-20×10 2 55 Φ1400×3.1 DKG55-2
149 WZG40/144-2D 100 144 180 45 40 36 1200 1600 2000 100DL72-20×2 2 18.5 Φ1600×3.2 DKG18.5-2
150 WZG60/144-2D 100 144 180 67.5 60 54 1200 1600 2000 100DL72-20×3 2 22 Φ1600×3.2 DKG22-2
151 WZG80/144-2D 100 144 180 90 80 72 1200 1600 2000 100DL72-20×4 2 30 Φ1600×3.2 DKG30-2
152 WZG100/144-2D 100 144 180 112.5 100 90 1200 1600 2000 100DL72-20×5 2 37 Φ1600×3.2 DKG37-2
153 WZG120/144-2D 100 144 180 135 120 106 1200 1600 2000 100DL72-20×6 2 45 Φ1600×3.2 DKG45-2
154 WZG140/144-2D 100 144 180 157.5 140 126 1200 1600 2000 100DL72-20×7 2 55 Φ1600×3.2 DKG55-2
155 WZG160/144-2D 100 144 180 180 160 144 1200 1600 2000 100DL72-20×8 2 55 Φ1600×3.2 DKG55-2
156 WZG180/144-2D 100 144 180 202.5 180 162 1200 1600 2000 100DL72-20×9 2 75 Φ1600×3.2 DKG75-2
157 WZG200/144-2D 100 144 180 225 200 180 1200 1600 2000 100DL72-20×10 2 75 Φ1600×3.2 DKG75-2
158 WZG40/200-2D 144 200 252 43.4 40 34 1500 2500 3000 100DL100-20×2 2 18.5 Φ2000×3.5 DKG18.5-2
159 WZG60/200-2D 144 200 252 65.1 60 51 1500 2500 3000 100DL100-20×3 2 30 Φ2000×3.5 DKG30-2
160 WZG80/200-2D 144 200 252 86.8 80 68 1500 2500 3000 100DL100-20×4 2 37 Φ2000×3.5 DKG37-2
161 WZG100/200-2D 144 200 252 108.5 100 85 1500 2500 3000 100DL100-20×5 2 45 Φ2000×3.5 DKG45-2
162 WZG120/200-2D 144 200 252 130.2 120 102 1500 2500 3000 100DL100-20×6 2 55 Φ2000×3.5 DKG55-2
163 WZG140/200-2D 144 200 252 151.9 140 119 1500 2500 3000 100DL100-20×7 2 75 Φ2000×3.5 DKG75-2
164 WZG160/200-2D 144 200 252 173.6 160 136 1500 2500 3000 100DL100-20×8 2 75 Φ2000×3.5 DKG75-2
165 WZG180/200-2D 144 200 252 195.3 180 153 1500 2500 3000 100DL100-20×9 2 90 Φ2000×3.5 DKG90-2
166 WZG200/200-2D 144 200 252 217 200 170 1500 2500 3000 100DL100-20×10 2 90 Φ2000×3.5 DKG90-2
167 WZG30/9-3L 7.2 9 14.1 31.2 30 23.1 20 30 50 25LG3-10×3 3 1.1 Φ600×1.5 DKG1.1-3
168 WZG40/9-3L 7.2 9 14.1 41.6 40 30.8 20 30 50 25LG3-10×4 3 1.5 Φ600×1.5 DKG1.5-3
169 WZG50/9-3L 7.2 9 14.1 52 50 38.5 20 30 50 25LG3-10×5 3 1.5 Φ600×1.5 DKG1.5-3
170 WZG60/9-3L 7.2 9 14.1 62.4 60 46.2 20 30 50 25LG3-10×6 3 2.2 Φ600×1.5 DKG2.2-3
171 WZG70/9-3L 7.2 9 14.1 72.8 70 53.9 20 30 50 25LG3-10×7 3 2.2 Φ600×1.5 DKG2.2-3
172 WZG80/9-3L 7.2 9 14.1 83.2 80 61.6 20 30 50 25LG3-10×8 3 2.2 Φ600×1.5 DKG2.2-3
173 WZG90/9-3L 7.2 9 14.1 93.6 90 69.3 20 30 50 25LG3-10×9 3 2.2 Φ600×1.5 DKG2.2-3
174 WZG100/9-3L 7.2 9 14.1 104 100 77 20 30 50 25LG3-10×10 3 3 Φ600×1.5 DKG3-3
175 WZG30/20-3L 13.5 19.5 28.5 32.6 30 23 90 140 250 32LG6.5-15×2 3 1.5 Φ800×2.0 DKG1.5-3
176 WZG45/20-3L 13.5 19.5 28.5 48.9 45 34.5 90 140 250 32LG6.5-15×3 3 2.2 Φ800×2.0 DKG2.2-3
177 WZG60/20-3L 13.5 19.5 28.5 65.5 60 46 90 140 250 32LG6.5-15×4 3 3 Φ800×2.0 DKG3-3
178 WZG75/20-3L 13.5 19.5 28.5 81.5 75 57.5 90 140 250 32LG6.5-15×5 3 4 Φ800×2.0 DKG4-3
179 WZG90/20-3L 13.5 19.5 28.5 97.8 90 69 90 140 250 32LG6.5-15×6 3 4 Φ800×2.0 DKG4-3
180 WZG105/20-3L 13.5 19.5 28.5 114.1 105 80.5 90 140 250 32LG6.5-15×7 3 5.5 Φ800×2.0 DKG5.5-3
181 WZG120/20-3L 13.5 19.5 28.5 130.4 120 92 90 140 250 32LG6.5-15×8 3 5.5 Φ800×2.0 DKG5.5-3
182 WZG30/36-3L 27 36 54 32 30 24 140 250 300 40LG12-15×2 3 22 Φ800×2.0 DKG22-3
183 WZG45/36-3L 27 36 54 48 45 36 140 250 300 40LG12-15×3 3 3 Φ800×2.0 DKG3-3
184 WZG60/36-3L 27 36 54 64 60 48 140 250 300 40LG12-15×4 3 4 Φ800×2.0 DKG4-3
185 WZG75/36-3L 27 36 54 80 75 60 140 250 300 40LG12-15×5 3 55 Φ800×2.0 DKG55-3
186 WZG90/36-3L 27 36 54 96 90 72 140 250 300 40LG12-15×6 3 5.5 Φ800×2.0 DKG5.5-3
187 WZG105/36-3L 27 36 54 112 105 80 140 250 300 40LG12-15×7 3 7.5 Φ800×2.0 DKG7.5-3
188 WZG120/36-3L 27 36 54 128 120 96 140 250 300 40LG12-15×8 3 7.5 Φ800×2.0 DKG7.5-3
189 WZG40/72-3L 54 72 90 44 40 33 400 650 850 50LG24-20×2 3 5.5 Φ1200×2.6 DKG5.5-3
190 WZG60/72-3L 54 72 90 66 60 49.5 400 650 850 50LG24-20×3 3 7.5 Φ1200×2.6 DKG7.5-3
191 WZG80/72-3L 54 72 90 88 80 66 400 650 850 50LG24-20×4 3 11 Φ1200×2.6 DKG11-3
192 WZG100/72-3L 54 72 90 110 100 82.5 400 650 850 50LG24-20×5 3 11 Φ1200×2.6 DKG11-3
193 WZG120/72-3L 54 72 90 132 120 99 400 650 850 50LG24-20×6 3 15 Φ1200×2.6 DKG15-3
194 WZG40/108-3L 81 108 129.6 45.5 40 34 400 650 850 65LG36-20×2 3 7.5 Φ1400×3.1 DKG7.5-3
195 WZG60/108-3L 81 108 129.6 68.2 60 51 400 650 850 65LG36-20×3 3 11 Φ1400×3.1 DKG11-3
196 WZG80/108-3L 81 108 129.6 91 80 68 400 650 850 65LG36-20×4 3 15 Φ1400×3.1 DKG15-3
197 WZG100/108-3L 81 108 129.6 113.7 100 85 400 650 800 65LG36-20×5 3 18.5 Φ1400×3.1 DKG18.5-3
198 WZG120/108-3L 81 108 129.6 136.5 120 102 400 650 800 65LG36-20×6 3 22 Φ1400×3.1 DKG22-3
199 WZG40/150-3L 120 150 205.2 43.6 40 31.7 1300 1600 2200 80LG50-20×2 3 11 Φ1600×3.2 DKG11-3
200 WZG60/150-3L 120 150 205.2 65.4 60 47.5 1300 1600 2200 80LG50-20×3 3 15 Φ1600×3.2 DKG15-3
201 WZG80/150-3L 120 150 205.2 87.2 80 63.4 1300 1600 2200 80LG50-20×4 3 18.5 Φ1600×3.2 DKG18.5-3
202 WZG100/150-3L 120 150 205.2 109 100 79.2 1300 1600 2200 80LG50-20×5 3 22 Φ1600×3.2 DKG22-3
203 WZG33/12-3G 8.4 12 14.4 36 33 28.5 30 50 90 25GDL4-11×3 3 1.1 Φ600×1.5 DKG1.1-3
204 WZG44/12-3G 8.4 12 14.4 48 44 38 30 50 90 25GDL4-11×4 3 1.5 Φ600×1.5 DKG1.5-3
205 WZG55/12-3G 8.4 12 14.4 60 55 47.5 30 50 90 25GDL4-11×5 3 2.2 Φ600×1.5 DKG2.2-3
206 WZG66/12-3G 8.4 12 14.4 72 66 57 30 50 90 25GDL4-11×6 3 2.2 Φ600×1.5 DKG2.2-3
207 WZG77/12-3G 8.4 12 14.4 84 77 66.5 30 50 90 25GDL4-11×7 3 3 Φ600×1.5 DKG3-3
208 WZG88/12-3G 8.4 12 14.4 96 88 76 30 50 90 25GDL4-11×8 3 3 Φ600×1.5 DKG3-3
209 WZG99/12-3G 8.4 12 14.4 108 99 85.5 30 50 90 25GDL4-11×9 3 3 Φ600×1.5 DKG3-3
210 WZG110/12-3G 8.4 12 14.4 120 110 95 30 50 90 25GDL4-11×10 3 4 Φ600×1.5 DKG4-3
211 WZG121/12-3G 8.4 12 14.4 132 121 104.5 30 50 90 25GDL4-11×11 3 4 Φ600×1.5 DKG4-3
212 WZG132/12-3G 8.4 12 14.4 144 132 114 30 50 90 25GDL4-11×12 3 4 Φ600×1.5 DKG4-3
213 WZG36/18-3G 12.6 18 21.6 41 36 30.5 60 100 150 40GDL6-12×3 3 1.5 Φ800×2.0 DKG1.5-3
214 WZG48/18-3G 12.6 18 21.6 54 48 40.6 60 100 150 40GDL6-12×4 3 2.2 Φ800×2.0 DKG2.2-3
215 WZG60/18-3G 12.6 18 21.6 68 60 51 60 100 150 40GDL6-12×5 3 2.2 Φ800×2.0 DKG2.2-3
216 WZG72/18-3G 12.6 18 21.6 82 72 61 60 100 150 40GDL6-12×6 3 3 Φ800×2.0 DKG3-3
217 WZG84/18-3G 12.6 18 21.6 95 84 71 60 100 150 40GDL6-12×7 3 3 Φ800×2.0 DKG3-3
218 WZG96/18-3G 12.6 18 21.6 109 96 81 60 100 150 40GDL6-12×8 3 4 Φ800×2.0 DKG4-3
219 WZG108/18-3G 12.6 18 21.6 123 108 91 60 100 150 40GDL6-12×9 3 4 Φ800×2.0 DKG4-3
220 WZG120/18-3G 12.6 18 21.6 136 120 102 60 100 150 40GDL6-12×10 3 4 Φ800×2.0 DKG4-3
221 WZG132/18-3G 12.6 18 21.6 150 132 112 60 100 150 40GDL6-12×11 3 5.5 Φ800×2.0 DKG5.5-3
222 WZG144/18-3G 12.6 18 21.6 164 144 122 60 100 150 40GDL6-12×12 3 5.5 Φ800×2.0 DKG5.5-3
223 WZG30/36-3G 25.2 36 43.2 36 30 24 140 250 300 50GDL12-15×2 3 2.2 Φ800×2.0 DKG2.2-3
224 WZG45/36-3G 25.2 36 43.2 54 45 36 140 250 300 50GDL12-15×3 3 3 Φ800×2.0 DKG3-3
225 WZG60/36-3G 25.2 36 43.2 72 60 48 140 250 300 50GDL12-15×4 3 4 Φ800×2.0 DKG4-3
226 WZG75/36-3G 25.2 36 43.2 90 75 60 140 250 300 50GDL12-15×5 3 5.5 Φ800×2.0 DKG5.5-3
227 WZG90/36-3G 25.2 36 43.2 108 90 72 140 250 300 50GDL12-15×6 3 5.5 Φ800×2.0 DKG5.5-3
228 WZG105/36-3G 25.2 36 43.2 126 105 84 140 250 300 50GDL12-15×7 3 7.5 Φ800×2.0 DKG7.5-3
229 WZG120/36-3G 25.2 36 43.2 144 120 96 140 250 300 50GDL12-15×8 3 7.5 Φ800×2.0 DKG7.5-3
230 WZG135/36-3G 25.2 36 43.2 162 135 108 140 250 300 50GDL12-15×9 3 11 Φ800×2.0 DKG11-3
231 WZG150/36-3G 25.2 36 43.2 180 150 120 140 250 300 50GDL12-15×10 3 11 Φ800×2.0 DKG11-3
232 WZG30/54-3G 37.8 54 64.8 36 30 25 250 350 500 50GDL18-15×2 3 3 Φ1000×2.2 DKG3-3
233 WZG45/54-3G 37.8 54 64.8 54 45 37.5 250 350 500 50GDL18-15×3 3 4 Φ1000×2.2 DKG4-3
234 WZG60/54-3G 37.8 54 64.8 72 60 50 250 350 500 50GDL18-15×4 3 5.5 Φ1000×2.2 DKG5.5-3
235 WZG75/54-3G 37.8 54 64.8 90 75 62.5 250 350 500 50GDL18-15×5 3 7.5 Φ1000×2.2 DKG7.5-3
236 WZG90/54-3G 37.8 54 64.8 108 90 75 250 350 500 50GDL18-15×6 3 7.5 Φ1000×2.2 DKG7.5-3
237 WZG105/54-3G 37.8 54 64.8 126 105 82.5 250 350 500 50GDL18-15×7 3 11 Φ1000×2.2 DKG11-3
238 WZG120/54-3G 37.8 54 64.8 144 120 100 250 350 500 50GDL18-15×8 3 11 Φ1000×2.2 DKG11-3
239 WZG135/54-3G 37.8 54 64.8 162 135 112.5 250 350 500 50GDL18-15×9 3 15 Φ1000×2.2 DKG15-3
240 WZG150/54-3G 37.8 54 64.8 180 150 125 250 350 500 50GDL18-15×10 3 15 Φ1000×2.2 DKG15-3
241 WZG24/72-3G 50.4 72 86.4 27 24 22 400 650 800 65GDL24-12×2 3 3 Φ1200×2.6 DKG3-3
242 WZG36/72-3G 50.4 72 86.4 40.6 36 33 400 650 800 65GDL24-12×3 3 4 Φ1200×2.6 DKG4-3
243 WZG48/72-3G 50.4 72 86.4 54 48 44 400 650 800 65GDL24-12×4 3 5.5 Φ1200×2.6 DKG5.5-3
244 WZG60/72-3G 50.4 72 86.4 67.5 60 55 400 650 800 65GDL24-12×5 3 7.5 Φ1200×2.6 DKG7.5-3
245 WZG72/72-3G 50.4 72 86.4 81 72 66 400 650 800 65GDL24-12×6 3 7.5 Φ1200×2.6 DKG7.5-3
246 WZG84/72-3G 50.4 72 86.4 94.5 84 77 400 650 800 65GDL24-12×7 3 11 Φ1200×2.6 DKG11-3
247 WZG96/72-3G 50.4 72 86.4 108 96 88 400 650 800 65GDL24-12×8 3 11 Φ1200×2.6 DKG11-3
248 WZG108/72-3G 50.4 72 86.4 121.5 108 99 400 650 800 65GDL24-12×9 3 15 Φ1200×2.6 DKG15-3
249 WZG120/72-3G 50.4 72 86.4 135 120 110 400 650 800 65GDL24-12×10 3 15 Φ1200×2.6 DKG15-3
250 WZG24/108-3G 75.6 108 129.6 27 24 21 750 1000 1400 80GDL36-12×2 3 4 Φ1400×3.1 DKG4-3
251 WZG36/108-3G 75.6 108 129.6 40.5 36 31.5 750 1000 1400 80GDL36-12×3 3 5.5 Φ1400×3.1 DKG5.5-3
252 WZG48/108-3G 75.6 108 129.6 54 48 42 750 1000 1400 80GDL36-12×4 3 7.5 Φ1400×3.1 DKG7.5-3
253 WZG60/108-3G 75.6 108 129.6 67.5 60 52.5 750 1000 1400 80GDL36-12×5 3 11 Φ1400×3.1 DKG11-3
254 WZG72/108-3G 75.6 108 129.6 81 72 63 750 1000 1400 80GDL36-12×6 3 11 Φ1400×3.1 DKG11-3
255 WZG84/108-3G 75.6 108 129.6 94.5 84 73.5 750 1000 1400 80GDL36-12×7 3 15 Φ1400×3.1 DKG15-3
256 WZG96/108-3G 75.6 108 129.6 108 96 84 750 1000 1400 80GDL36-12×8 3 15 Φ1400×3.1 DKG15-3
257 WZG108/108-3G 75.6 108 129.6 121.5 108 94.5 750 1000 1400 80GDL36-12×9 3 18.5 Φ1400×3.1 DKG18.5-3
258 WZG120/108-3G 75.6 108 129.6 135 120 115 750 1000 1400 80GDL36-12×10 3 18.5 Φ1400×3.1 DKG18.5-3
259 WZG28/162-3G 113.4 162 194.4 32 28 25 1400 1800 1200 80GDL54-14×2 3 7.5 Φ1600×3.2 DKG7.5-3
260 WZG42/162-3G 113.4 162 194.4 48 42 37.5 1400 1800 1200 80GDL54-14×3 3 11 Φ1600×3.2 DKG11-3
261 WZG56/162-3G 113.4 162 194.4 64 56 50 1400 1800 1200 80GDL54-14×4 3 15 Φ1600×3.2 DKG15-3
262 WZG70/162-3G 113.4 162 194.4 80 70 62.5 1400 1800 1200 80GDL54-14×5 3 18.5 Φ1600×3.2 DKG18.5-3
263 WZG84/162-3G 113.4 162 194.4 96 84 75 1400 1800 1200 80GDL54-14×6 3 18.5 Φ1600×3.2 DKG18.5-3
264 WZG98/162-3G 113.4 162 194.4 112 98 87.5 1400 1800 1200 80GDL54-14×7 3 22 Φ1600×3.2 DKG22-3
265 WZG112/162-3G 113.4 162 194.4 128 112 100 1400 1800 1200 80GDL54-14×8 3 30 Φ1600×3.2 DKG30-3
266 WZG126/162-3G 113.4 162 194.4 144 126 112.5 1400 1800 1200 80GDL54-14×9 3 30 Φ1600×3.2 DKG30-3
267 WZG140/162-3G 113.4 162 194.4 160 140 125 1400 1800 1200 80GDL54-14×10 3 37 Φ1600×3.2 DKG37-3
268 WZG28/216-3G 151.2 216 259.2 32 28 24 1500 2600 3000 100GDL72-14×2 3 11 Φ2000×3.5 DKG11-3
269 WZG42/216-3G 151.2 216 259.2 48 42 36 1500 2600 3000 100GDL72-14×3 3 15 Φ2000×3.5 DKG15-3
270 WZG66/216-3G 151.2 216 259.2 64 56 48 1500 2600 3000 100GDL72-14×4 3 18.5 Φ2000×3.5 DKG18.5-3
271 WZG70/216-3G 151.2 216 259.2 80 70 60 1500 2600 3000 100GDL72-14×5 3 22 Φ2000×3.5 DKG22-3
272 WZG84/216-3G 151.2 216 259.2 96 84 72 1500 2600 3000 100GDL72-14×6 3 30 Φ2000×3.5 DKG30-3
273 WZG98/216-3G 151.2 216 259.2 112 98 84 1500 2600 3000 100GDL72-14×7 3 30 Φ2000×3.5 DKG30-3
274 WZG112/216-3G 151.2 216 259.2 128 112 96 1500 2600 3000 100GDL72-14×8 3 37 Φ2000×3.5 DKG37-3
275 WZG126/216-3G 151.2 216 259.2 144 126 108 1500 2600 3000 100GDL72-14×9 3 37 Φ2000×3.5 DKG37-3
276 WZG140/216-3G 151.2 216 259.2 160 140 120 1500 2600 3000 100GDL72-14×10 3 45 Φ2000×3.5 DKG45-3
277 WZG24/18-3D 12.6 18 21.6 26 24 22 80 130 220 40DL6-12×2 3 1.5 Φ800×2.0 DKG1.5-3
278 WZG36/18-3D 12.6 18 21.6 39 36 33 80 130 220 40DL6-12×3 3 2.2 Φ800×2.0 DKG2.2-3
279 WZG48/18-3D 12.6 18 21.6 52 48 44 80 130 220 40DL6-12×4 3 3 Φ800×2.0 DKG3-3
280 WZG60/18-3D 12.6 18 21.6 65 60 55 80 130 220 40DL6-12×5 3 4 Φ800×2.0 DKG4-3
281 WZG72/18-3D 12.6 18 21.6 78 72 66 80 130 220 40DL6-12×6 3 4 Φ800×2.0 DKG4-3
282 WZG84/18-3D 12.6 18 21.6 91 84 77 80 130 220 40DL6-12×7 3 5.5 Φ800×2.0 DKG5.5-3
283 WZG96/18-3D 12.6 18 21.6 104 96 88 80 130 220 40DL6-12×8 3 5.5 Φ800×2.0 DKG5.5-3
284 WZG108/18-3D 12.6 18 21.6 117 108 99 80 130 220 40DL6-12×9 3 7.5 Φ800×2.0 DKG7.5-3
285 WZG120/18-3D 12.6 18 21.6 130 120 110 80 130 220 40DL6-12×10 3 7.5 Φ800×2.0 DKG7.5-3
286 WZG132/18-3D 12.6 18 21.6 143 132 121 80 130 220 40DL6-12×11 3 7.5 Φ800×2.0 DKG7.5-3
287 WZG144/18-3D 12.6 18 21.6 156 144 132 80 130 220 40DL6-12×12 3 11 Φ800×2.0 DKG11-3
288 WZG25/36-3D 27 36 54 27 25 22 150 250 320 50DL12-12.5×2 3 3 Φ800×2.0 DKG3-3
289 WZG38/36-3D 27 36 54 40.5 37.5 33 150 250 320 50DL12-12.5×3 3 3 Φ800×2.0 DKG3-3
290 WZG50/36-3D 27 36 54 54 50 44 150 250 320 50DL12-12.5×4 3 4 Φ800×2.0 DKG4-3
291 WZG62/36-3D 27 36 54 67.5 62.5 55 150 250 320 50DL12-12.5×5 3 5.5 Φ800×2.0 DKG5.5-3
292 WZG75/36-3D 27 36 54 81 75 66 150 250 320 50DL12-12.5×6 3 5.5 Φ800×2.0 DKG5.5-3
293 WZG88/36-3D 27 36 54 94.5 87.5 77 150 250 320 50DL12-12.5×7 3 7.5 Φ800×2.0 DKG7.5-3
294 WZG100/36-3D 27 36 54 108 100 88 150 250 320 50DL12-12.5×8 3 7.5 Φ800×2.0 DKG7.5-3
295 WZG112/36-3D 27 36 54 121.5 112.5 99 150 250 320 50DL12-12.5×9 3 11 Φ800×2.0 DKG11-3
296 WZG125/36-3D 27 36 54 135 125 110 150 250 320 50DL12-12.5×10 3 11 Φ800×2.0 DKG11-3
297 WZG30/90-3D 54 90 108 33 30 26 450 900 1000 60DL30-15×2 3 5.5 Φ1200×2.6 DKG5.5-3
298 WZG45/90-3D 54 90 108 49.5 45 39 450 900 1000 60DL30-15×3 3 7.5 Φ1200×2.6 DKG7.5-3
299 WZG60/90-3D 54 90 108 66 60 52 450 900 1000 60DL30-15×4 3 11 Φ1200×2.6 DKG11-3
300 WZG75/90-3D 54 90 108 82.5 75 65 450 900 1000 60DL30-15×5 3 11 Φ1200×2.6 DKG11-3
301 WZG90/90-3D 54 90 108 99 90 78 450 900 1000 60DL30-15×6 3 15 Φ1200×2.6 DKG15-3
302 WZG105/90-3D 54 90 108 115.5 105 91 450 900 1000 60DL30-15×7 3 15 Φ1200×2.6 DKG15-3
303 WZG120/90-3D 54 90 108 132 120 104 450 900 1000 60DL30-15×8 3 18.5 Φ1200×2.6 DKG18.5-3
304 WZG135/90-3D 54 90 108 148.5 135 117 450 900 1000 60DL30-15×9 3 22 Φ1200×2.6 DKG22-3
305 WZG150/90-3D 54 90 108 165 150 130 450 900 1000 60DL30-15×10 3 22 Φ1200×2.6 DKG22-3
306 WZG40/162-3D 97.2 162 195 42 40 36 1200 1600 2000 50DL54-20×2 3 11 Φ1400×3.1 DKG11-3
307 WZG60/162-3D 97.2 162 195 63 60 54 1200 1600 2000 50DL54-20×3 3 15 Φ1400×3.1 DKG15-3
308 WZG80/162-3D 97.2 162 195 84 80 72 1200 1600 2000 50DL54-20×4 3 22 Φ1400×3.1 DKG22-3
309 WZG100/162-3D 97.2 162 195 105 100 90 1200 1600 2000 50DL54-20×5 3 30 Φ1400×3.1 DKG30-3
310 WZG120/162-3D 97.2 162 195 126 120 108 1200 1600 2000 50DL54-20×6 3 30 Φ1400×3.1 DKG30-3
311 WZG140/162-3D 97.2 162 195 147 140 126 1200 1600 2000 50DL54-20×7 3 37 Φ1600×3.2 DKG37-3
312 WZG160/162-3D 97.2 162 195 168 160 144 1200 1600 2000 50DL54-20×8 3 45 Φ1600×3.2 DKG45-3
313 WZG180/162-3D 97.2 162 195 189 180 162 1200 1600 2000 50DL54-20×9 3 45 Φ1600×3.2 DKG45-3
314 WZG200/162-3D 97.2 162 195 210 200 180 1200 1600 2000 50DL54-20×10 3 55 Φ1600×3.2 DKG55-3
315 WZG40/216-3D 150 216 270 45 40 36 1500 2500 3000 100DL72-20×2 3 18.5 Φ2000×3.5 DKG18.5-3
316 WZG60/216-3D 150 216 270 67.5 60 54 1500 2500 3000 100DL72-20×3 3 22 Φ2000×3.5 DKG22-3
317 WZG80/216-3D 150 216 270 90 80 72 1500 2500 3000 100DL72-20×4 3 30 Φ2000×3.5 DKG30-3
318 WZG100/216-3D 150 216 270 112.5 100 90 1500 2500 3000 100DL72-20×5 3 37 Φ2000×3.5 DKG37-3
319 WZG120/216-3D 150 216 270 135 120 106 1500 2500 3000 100DL72-20×6 3 45 Φ2000×3.5 DKG45-3
320 WZG140/216-3D 150 216 270 157.5 140 126 1500 2500 3000 100DL72-20×7 3 55 Φ2000×3.5 DKG55-3
321 WZG160/216-3D 150 216 270 180 160 144 1500 2500 3000 100DL72-20×8 3 55 Φ2000×3.5 DKG55-3
322 WZG180/216-3D 150 216 270 202.5 180 162 1500 2500 3000 100DL72-20×9 3 75 Φ2000×3.5 DKG75-3
323 WZG200/216-3D 216 300 378 225 200 180 2500 3500 4000 100DL72-20×10 3 75 Φ2000×3.5 DKG75-3
324 WZG40/300-3D 216 300 378 43 40 34 2500 3500 4000 100DL100-20×2 3 18.5 Φ2000×3.5 DKG18.5-3
325 WZG60/300-3D 216 300 378 65 60 51 2500 3500 4000 100DL100-20×3 3 30 Φ2000×3.5 DKG30-3
326 WZG80/300-3D 216 300 378 86.8 80 68 2500 3500 4000 100DL100-20×4 3 37 Φ2000×3.5 DKG37-3
327 WZG100/300-3D 216 300 378 108.5 100 85 2500 3500 4000 100DL100-20×5 3 45 Φ2000×3.5 DKG45-3
328 WZG120/300-3D 216 300 378 130 120 102 2500 3500 4000 100DL100-20×6 3 55 Φ2000×3.5 DKG55-3
329 WZG140/300-3D 216 300 378 151.9 140 119 2500 3500 4000 100DL100-20×7 3 75 Φ2000×3.5 DKG75-3
330 WZG160/300-3D 216 300 378 173.6 160 136 2500 3500 4000 100DL100-20×8 3 75 Φ2000×3.5 DKG75-3
331 WZG180/300-3D 216 300 378 195.3 180 153 2500 3500 4000 100DL100-20×9 3 90 Φ2000×3.5 DKG90-3
332 WZG200/300-3D 216 300 378 217 200 170 2500 3500 4000 100DL100-20×10 3 90 Φ2000×3.5 DKG90-3



外形及安装尺寸图



外形与安装尺寸
序号 设备型号 A A1 A2 A3 A4 B B1 B2 B3 B4 H H1 H2 DN1 DN2 d1 d2
1 WZ30/6-2L 1500 800 850 600 1000 1600 560 400 800 600 1250 185 700 80 80 18 24
2 WZG40/6-2L 750
3 WZG50/6-2L 800
4 WZG60/6-2L 850
5 WZG70/6-2L 900
6 WZG80/6-2L 950
7 WZG90/6-2L 1000
8 WZG100/6-2L 1000
9 WZG30/13-2L 1500 900 850 700 1100 1600 560 400 800 600 1250 160 700 80 80 18 24
10 WZG45/13-2L 750
11 WZG60/13-2L 800
12 WZG75/13-2L 850
13 WZG90/13-2L 900
14 WZG105/13-2L 950
15 WZG120/13-2L 1000
16 WZG30/24-2L 2000 900 1050 700 1100 1800 560 480 800 800 1450 160 700 80 80 18 24
17 WZG45/24-2L 760
18 WZG60/24-2L 820
19 WZG75/24-2L 2000 900 1050 700 1100 1800 560 480 800 800 1450 160 880 80 80 18 24
20 WZG90/24-2L 940
21 WZG105/24-2L 1000
22 WZG120/24-2L 1060
23 WZG40/48-2L 2200 1000 1100 800 1200 2000 660 600 1000 1000 1700 180 750 100 100 18 24
24 WZG60/48-2L 820
25 WZG80/48-2L 890
26 WZG100/48-2L 960
27 WZG120/48-2L 1030
28 WZG40/72-2L 2600 1000 1150 800 1200 2200 660 720 1000 1200 1850 200 800 100 100 18 24
29 WZG60/72-2L 880
30 WZG80/72-2L 960
31 WZG100/72-2L 1040
32 WZG120/72-2L 1200
33 WZG40/100-2L 3100 1200 1350 900 1400 2600 760 840 1200 1400 2100 220 900 125 125 18 27
34 WZG60/100-2L 980
35 WZG80/100-2L 1060
36 WZG100/100-2L 1140
37 WZG33/8-2G 1500 800 850 600 1000 1600 560 400 700 600 1250 160 800 80 80 18 24
38 WZG44/8-2G
39 WZG55/8-2G
40 WZG66/8-2G
41 WZG77/8-2G
42 WZG88/8-2G
43 WZG99/8-2G
44 WZG110/8-2G
45 WZG121/8-2G
46 WZG132/8-2G
47 WZG36/12-2G 1500 900 850 700 1110 1600 560 400 800 600 1250 160 800 80 80 18 24
48 WZG48/12-2G
49 WZG60/12-2G
50 WZG72/12-2G
51 WZG84/12-2G
52 WZG96/12-2G
53 WZG108/12-2G
54 WZG120/12-2G
55 WZG132/12-2G
56 WZG144/12-2G
57 WZG30/24-2G 2000 900 1050 700 1100 1800 560 480 800 800 1450 180 800 80 80 18 24
58 WZG45/24-2G
59 WZG60/24-2G
60 WZG75/24-2G
61 WZG90/24-2G
62 WZG105/24-2G
63 WZG120/24-2G
64 WZG135/24- 2000 900 1050 700 1100 1800 560 480 800 800 1450 180 800 80 80 18 24
65 WZG150/24-
66 WZG30/36- 2000 900 1050 700 1100 1800 560 480 800 800 1450 180 800 80 80 18 24
67 WZG45/36-
68 WZG60/36-
69 WZG75/36-
70 WZG90/36-
71 WZG105/36-
72 WZG120/36-
73 WZG135/36-
74 WZG150/36-
75 WZG24/48- 2200 1000 1150 800 1200 2000 660 600 1000 1000 1700 180 800 100 100 18 24
76 WZG36/48-
77 WZG48/48-
78 WZG60/48-
79 WZG72/48-
80 WZG84/48-
81 WZG96/48-
82 WZG108/48-
83 WZG120/48-
84 WZG24/72- 2600 1000 1150 800 1200 2200 660 720 1000 1200 1850 200 900 100 100 18 24
85 WZG36/72-
86 WZG48/72-
87 WZG60/72-
88 WZG72/72-
89 WZG84/72-
90 WZG96/72-
91 WZG108/72-
92 WZG120/72-
93 WZG28/108- 3100 1200 1350 900 1400 2600 760 840 1200 1400 2100 230 900 125 125 18 27
94 WZG42/108-
95 WZG56/108-
96 WZG70/108-
97 WZG84/108-
98 WZG98/108-
99 WZG112/108-
100 WZG126/108-
101 WZG140/108-
102 WZG28/144- 3200 1200 1350 900 1400 2600 760 840 1200 1600 2300 230 900 125 125 18 27
103 WZG42/144-
104 WZG56/144-
105 WZG70/144-
106 WZG84/144-
107 WZG98/144-
108 WZG112/144-
109 WZG126/144-2G 3200 1200 1350 900 1400 2600 760 840 1200 1600 2300 230 900 125 125 18 27
110 WZG140/144-2G
111 WZG24/12-2D 1500 800 850 600 1000 1600 560 400 800 600 1250 200 800 80 80 18 24
112 WZG36/12-2D 860
113 WZG48/12-2D 920
114 WZG60/12-2D 980
115 WZG72/12-2D 1040
116 WZG84/12-2D 1100
117 WZG96/12-2D 1160
118 WZG108/12-2D 1220
119 WZG120/12-2D 1280
120 WZG132/12-2D 1340
121 WZG144/12-2D 1400
122 WZG25/25-2D 2000 900 1050 700 1100 1800 560 480 800 800 1450 270 800 80 80 18 24
123 WZG38/25-2D 860
124 WZG50/25-2D 920
125 WZG62/25-2D 980
126 WZG75/25-2D 1040
127 WZG88/25-2D 1100
128 WZG100/25-2D 1160
129 WZG112/25-2D 1220
130 WZG125-252D 1280
131 WZG30/60-2D 2200 1000 1100 800 1200 2000 660 600 1000 1000 1700 250 900 100 100 18 24
132 WZG45/60-2D 980
133 WZG60/60-2D 1060
134 WZG75/60-2D 1140
135 WZG90/60-2D 1220
136 WZG105/60-2D 1300
137 WZG120/60-2D 1380
138 WZG135/60-2D 1460
139 WZG150/60-2D 1540
140 WZG40/108-2D 3100 1200 1350 900 1400 2600 760 840 1200 1400 2100 250 900 125 125 18 27
141 WZG60/108-2D 990
142 WZG80/108-2D 1080
143 WZG100/108-2D 1170
144 WZG120/108-2D 1260
145 WZG140/108-2D 1350
146 WZG160/108-2D 1440
147 WZG180/108-2D 1530
148 WZG200/108-2D 1620
149 WZG40/144-2D 3200 1400 1400 1000 1600 2800 760 900 1300 1600 2300 280 1100 150 150 18 27
150 WZG60/144-2D 1200
151 WZG80/144-2D 1300
152 WZG100/144-2D 1400
153 WZG120/144-2D 3200 1400 1400 1000 1600 2800 760 900 1300 1600 2300 280 1500 150 150 18 27
154 WZG140/144-2D 1600
155 WZG160/144-2D 1700
156 WZG180/144-2D 1800
157 WZG200/144-2D 1900
158 WZG40/200-2D 3500 1400 1400 1000 1600 2800 760 900 1300 2000 2700 280 1100 150 150 18 27
159 WZG60/200-2D 1200
160 WZG80/200-2D 1300
161 WZG100/200-2D 1400
162 WZG120/200-2D 1500
163 WZG140/200-2D 1600
164 WZG160/200-2D 1700
165 WZG180/200-2D 1800
166 WZG200/200-2D 1900
167 WZG30/9-3L 1500 1300 850 600 1500 1600 560 400 800 600 1250 185 700 80 80 18 24
168 WZG40/9-3L 750
169 WZG50/9-3L 800
170 WZG60/9-3L 850
171 WZG70/9-3L 900
172 WZG80/9-3L 950
173 WZG90/9-3L 1000
174 WZG100/9-3L 1000
175 WZG30/20-3L 2000 1500 1050 1300 1700 1800 560 480 800 800 1450 160 700 80 80 18 24
176 WZG45/20-3L 750
177 WZG60/20-3L 800
178 WZG75/20-3L 850
179 WZG90/20-3L 900
180 WZG105/20-3L 950
181 WZG120/20-3L 100
182 WZG30/36-3L 2000 1500 1050 1300 1700 1800 560 480 800 800 1450 160 700 80 80 18 24
183 WZG45/36-3L 760
184 WZG60/36-3L 820
185 WZG75/36-3L 880
186 WZG90/36-3L 940
187 WZG105/36-3L 1000
188 WZG120/36-3L 1060
189 WZG40/72-3L 2600 1800 1150 1500 2000 2200 660 720 1000 1200 1850 200 750 100 100 18 24
190 WZG60/72-3L 820
191 WZG80/72-3L 890
192 WZG100/72-3L 960
193 WZG120/72-3L 1030
194 WZG40/108-3L 3100 1800 1350 1600 2000 2600 760 840 1200 1400 2100 220 800 125 125 18 27
195 WZG60/108-3L 880
196 WZG80/108-3L 960
197 WZG100/108-3L 1040
198 WZG120/108-3L 3100 1800 1350 1600 2000 2600 760 840 1200 1400 2100 220 1200 125 125 18 27
199 WZG40/150-3L 900
200 WZG60/150-3L 3200 1800 1350 1600 2000 2800 760 840 1200 1600 2300 230 980 125 125 18 27
201 WZG80/150-3L 1060
202 WZG100/150-3L 1140
203 WZG33/12-3G 1500 1200 850 800 1400 1600 560 400 700 600 1250 160 800 80 80 18 24
204 WZG44/12-3G
205 WZG55/12-3G
206 WZG66/12-3G
207 WZG77/12-3G
208 WZG88/12-3G
209 WZG99/12-3G
210 WZG110/12-3G
211 WZG121/12-3G
212 WZG132/12-3G
213 WZG36/18-3G 2000 1400 1050 900 1600 1800 560 480 800 800 1450 180 800 80 80 18 24
214 WZG48/18-3G
215 WZG60/18-3G
216 WZG72/18-3G
217 WZG84/18-3G
218 WZG96/18-3G
219 WZG108/18-3G
220 WZG120/18-3G
221 WZG132/18-3G
222 WZG144/18-3G
223 WZG30/36-3G 2000 1400 1050 900 1600 1800 560 480 800 800 1450 180 800 80 80 18 24
224 WZG45/36-3G
225 WZG60/36-3G
226 WZG75/36-3G
227 WZG90/36-3G
228 WZG105/36-3G
229 WZG120/36-3G
230 WZG135/36-3G
231 WZG150/36-3G
232 WZG30/54-3G 2200 1600 1150 1100 1800 2000 660 600 1000 1000 1700 180 800 100 100 18 24
233 WZG45/54-3G
234 WZG60/54-3G
235 WZG75/54-3G
236 WZG90/54-3G
237 WZG105/54-3G
238 WZG120/54-3G
239 WZG135/54-3G
240 WZG150/54-3G
241 WZG24/72-3G 2600 1800 1150 1300 2000 2200 660 720 1000 1200 1850 180 900 100 100 18 24
242 WZG36/72-3G
243 WZG48/72-3G 2600 1800 1150 1300 2000 2200 660 720 1000 1200 1850 180 900 100 100 18 24
244 WZG60/72-3G
245 WZG72/72-3G
246 WZG84/72-3G
247 WZG96/72-3G
248 WZG108/72-3G
249 WZG120/72-3G
250 WZG24/108-3G 3100 1800 1350 1300 2000 2600 760 840 1200 1400 2100 200 900 125 125 18 27
251 WZG36/108-3G
252 WZG48/108-3G
253 WZG60/108-3G
254 WZG72/108-3G
255 WZG84/108-3G
256 WZG96/108-3G
257 WZG108/108-3G
258 WZG120/108-3G
259 WZG28/162-3G 3200 1200 1350 900 1400 2600 760 840 1200 1600 2300 230 900 125 125 18 27
260 WZG42/162-3G
261 WZG56/162-3G
262 WZG70/162-3G
263 WZG84/162-3G
264 WZG98/162-3G
265 WZG112/162-3G
266 WZG126/162-3G
267 WZG140/162-3G
268 WZG28/216-3G 3500 1600 1400 1000 1800 2800 760 900 1400 2000 2700 250 900 150 150 18 27
269 WZG42/216-3G
270 WZG56/216-3G
271 WZG70/216-3G
272 WZG84/216-3G
273 WZG98/216-3G
274 WZG112/216-3G
275 WZG126/216-3G
276 WZG140/216-3G
277 WZG24//18-3D 2000 1200 1050 900 1400 1800 560 480 800 800 1450 210 800 80 80 18 24
278 WZG36/18-3D 860
279 WZG48/18-3D 920
280 WZG60/18-3D 980
281 WZG72/18-3D 1040
282 WZG84/18-3D 1100
283 WZG96/18-3D 1160
284 WZG108/18-3D 1220
285 WZG120/18-3D 1280
286 WZG132/18-3D 1340
287 WZG144/18-3D 1400
288 WZG25/36-3D 2000 1300 1050 900 1400 1800 560 480 800 800 1450 220 800 80 80 18 24
289 WZG38/36-3D 860
290 WZG50/36-3D 920
291 WZG62/36-3D 980
292 WZG75/36-3D 1040
293 WZG88/36-3D 1100
294 WZG100/36-3D 1160
295 WZG112/36-3D 1220
296 WZG125/36-3D 1280
297 WZG30/90-3D 2600 1800 1150 1300 2000 2200 660 720 1000 1200 1850 240 900 100 100 18 24
298 WZG45/90-3D 980
299 WZG60/90-3D 1060
300 WZG75/90-3D 1140
301 WZG90/90-3D 1220
302 WZG105/90-3D 1300
303 WZG120/90-3D 1380
304 WZG135/90-3D 1460
305 WZG150/90-3D 1540
306 WZG40/162-3D 3100 1800 1350 900 2000 2600 760 840 1200 1400 2100 250 900 125 125 18 27
307 WZG60/162-3D 990
308 WZG80/162-3D 1080
309 WZG100/162-3D 1170
310 WZG120/162-3D 1260
311 WZG140/162-3D 1350
312 WZG160/162-3D 1440
313 WZG180/162-3D 1530
314 WZG200/162-3D 1620
315 WZG40/216-3D 3500 2200 1400 1000 2500 2800 760 900 1300 2000 2700 280 1100 150 150 18 27
316 WZG60/216-3D 1200
317 WZG80/216-3D 1300
318 WZG100/216-3D 1400
319 WZG120/216-3D 1500
320 WZG140/216-3D 1600
321 WZG160/216-3D 1700
322 WZG180/216-3D 1800
323 WZG200/216-3D 1900
324 WZG40/300-3D 3500 2200 1400 1000 2500 2800 760 900 1300 2000 2700 280 1100 150 150 18 27
325 WZG60/300-3D 1200
326 WZG80/300-3D 1300
327 WZG100/300-3D 1400
328 WZG120/300-3D 1500
329 WZG140/300-3D 1600
330 WZG160/300-3D 1700
331 WZG180/300-3D 1800
332 WZG200/300-3D 1900

WZG智能无负压给水设备厂家:

上海泰丰泵业制造有限公司是一家专业的水泵制造厂家,生产销售的WZG智能无负压给水设备品质高、价格实惠,本网页上显示的产品图、参数等资料,仅为选型参考之用,详细齐全的样本说明书,请来电索取,由于编辑水平有限,如发现错误和不妥之处,望您批评指正。

更多...

热点新闻

更多...

水泵知识

更多...

样板工程

水泵快速查找

配套产品
